Locate the longer set of 1.5” tracks. Slide the tracks on the top and bottom of the 1st sign, making sure the screw holes in the tracks are facing the back side of the sign.
Locate the Center 4” vertical post, this post has routed holes on two sides. Lay the post on the ground with one side with the holes facing up. Insert the center support pin in the small oval routed hole. Grab the 1st sign/tracks making sure the front of the sign faces the outside of the 90 degree angle based on where the routed holes are on the vertical post. Slide them into the routed holes, making sure the center support pin slides into one of the flutes in the sign. Push the tracks all the way in so they hit the back wall of the vertical post. Screw in place using 2 large screws. Lay the sign down so the face of the sign is on the ground.
Grab one of the 3.5” vertical post. Insert the center support pin. Slide onto the other side of the 1st sign/tracks making sure the center support pin is in place. Pull post in tight, making sure sign is flush with the post. Screw in place with 2 large screws.
Locate the short set of 1.5” tracks. Slide the tracks on the top and bottom of the 2nd sign, making sure the screw holes in the tracks are facing the back side of the sign. Insert the center support pin into the 2nd side of the center vertical 4” post. Slide 2nd sign/tracks into the routed holes in the center post, making sure the pin is in place and the sign faces the outside of the 90 degree angle. Slide tracks in as far as possible. Screw into place using 2 large screws.
Flip the assembled sign/frame so the 2nd sign face is now flat on the ground. Grab the remaining 3.5” post, insert the center support pin. Slide the post onto the tracks, making sure the pin is in place. Pull post in tight, making sure sign is flush with post, screw in place with 2 large screws.
Screw sign to tracks using the small screws. Make sure to screw both top and bottom tracks. Flip assembled sign back so the 1st sign face is on the ground. Screw sign to tracks on the 1st sign.

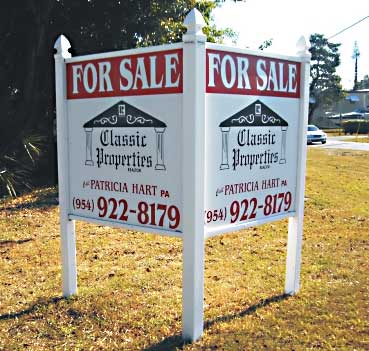

Stand the assembled sign up on it’s feet. Position in the desired installation location. Mark the spot where the posts are located so you know where to dig the holes. Lay the sign down on the ground on it's back, so the point of the arrow faces the sky. Dig the holes 18” - 24” deep. Place the caps on the top of the 3 posts. Flip the sign back up on it’s feet and insert the posts into the holes. Verify the sign is level as you compact the dirt back in tightly around each post.
Warning: Wear safety equipment including leather gloves and eye protection. Due care should be taken to avoid blocking visibility, pathways etc. Consult the proper authorities prior to installing the sign to insure there are no underground hazards, obstacles, utilities, pipes, etc.. There may be local regulations regarding the use of these signs.
